Visualising Lake Surface Water Temperature (LSWT) as timeseries at one location on a given lake and the spatial distribution of the LSWT for a given day

Before continuing with this tutorial, please verify that the C3S API is installed. All the information about this api is available at:

https://cds.climate.copernicus.eu/api-how-to#install-the-cds-api-key

---

In this tutorial we will access lake surface water temperature data from the Climate Data Store (CDS) and plot

• the timeseries at the lake centre for a given day of the year and

• the LSWT, uncertainty and quality level for all the pixels on the given lake on a selected day.

The tutorial comprises two main steps:

1. Dowload and decompress data for every year on record on the selected day of the year

2. Visualise and save the lake surface water temperature timeseries (displaying quality levels and uncertainty) at the lake centre, but other locations can be given through their lat/lon coordinates

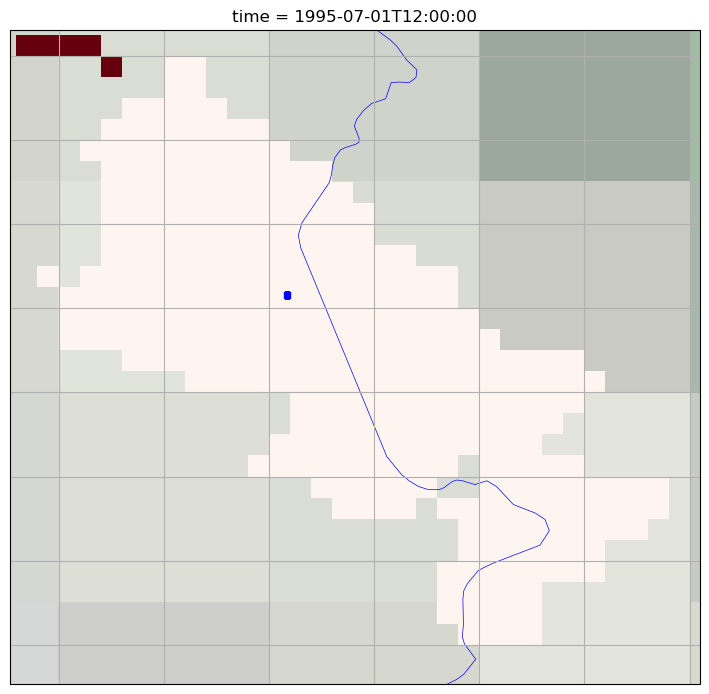

3. Visualise the location of the lake centre (or of the preferred location) on the lake mask

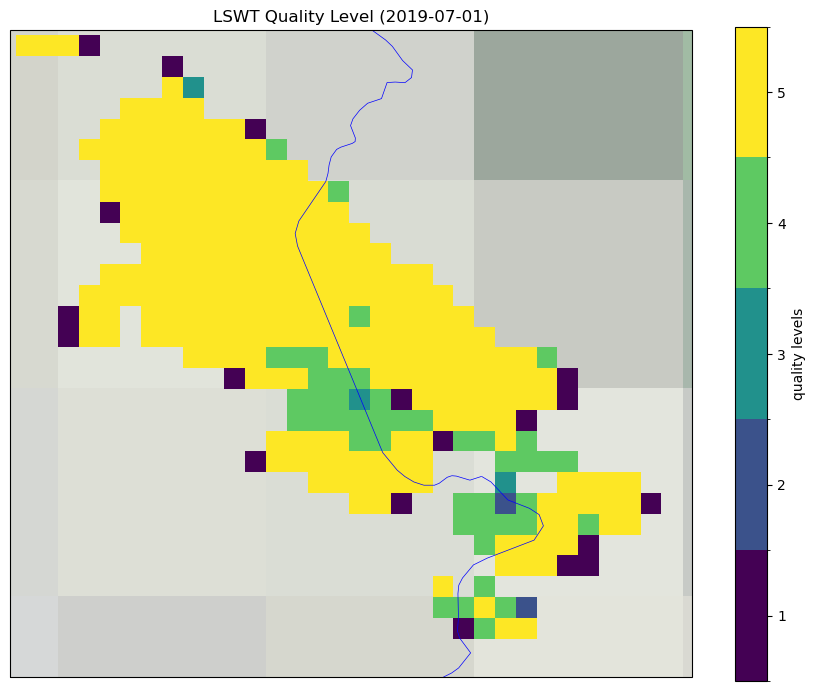

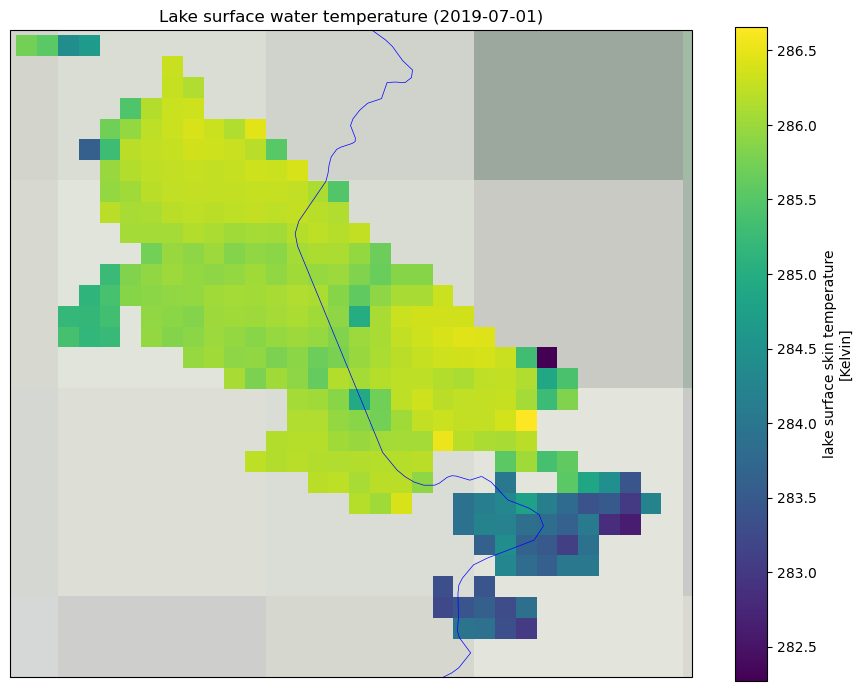

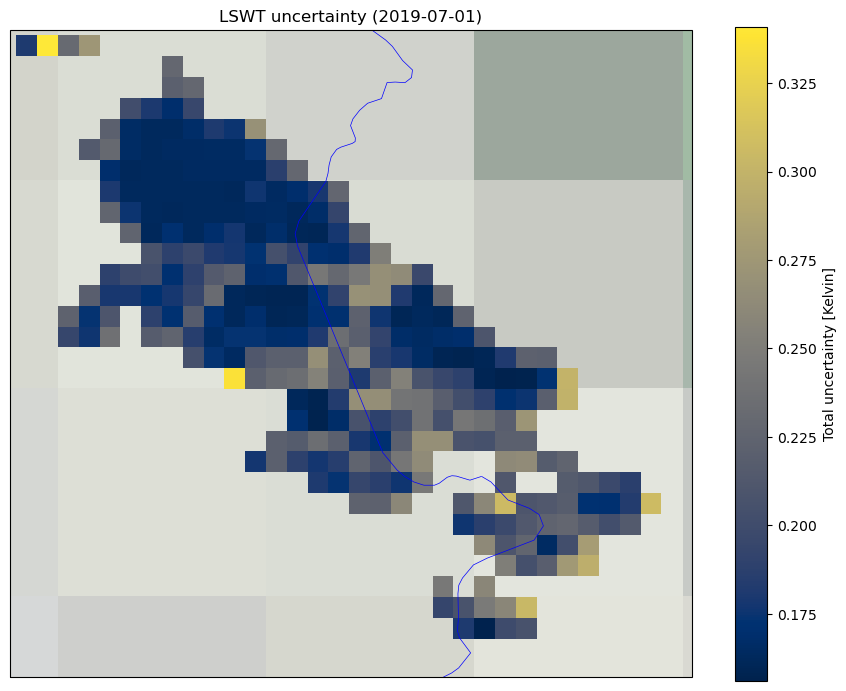

4. Plot the LSWT, uncertainty and quality level for all the available pixels on the selected lake on a given date

This tutorial will show you that:

1. how to find out for which lakes LSWT is available

2. the lake mask of a specific lake tells in which pixels to expect LSWT for a given lake

3. LSWT files contains LSWT but also quality levels, uncertainty and the lake mask

4. LSWTs have to be used together with the quality levels and the uncertainy. We recommend to use LSWT of quality level 4 and 5 only.

5. not all the pixels belonging to a lake will have LSWT for a given time

Import librairies

The lake surface water temperature data will be download in a zip file containing a NetCDF file. We need libraries to download data from the CDS but also libraires to manage zip files (zipfile library) and NetCDF files (xarray library). We also use libraries to plot and visualise data (matplotlib and cartopy libraries).

Additional libraires: os and glob are used for file management

import cdsapi
import os
import glob
import zipfile
import xarray as xr
import matplotlib.pyplot as plt
from cartopy import crs, feature
import numpy as np
import pandas as pd

For downloading and generating the timeserie, three inputs are required:

• The name of the lake (lake_name). The name of the lake must exists in the list of available lakes.

• The output directory name (output_dir) where the different files will be saved.

• The .csv file with the lake list of the GloboLakes 1000 lakes.

• The day of the year given as day and month

# Version of LSWT: currently available v4.0 (GloboLakes lakes). Soon available v4.5 (ESA CCI LAKES lakes)
version = '4.0'

# Input the name of the lake
lake_name = 'Titicaca'

# The directory to store downloaded files
DATADIR = './data_dir'
os.makedirs(DATADIR, exist_ok=True)

# The output directory name
output_dir = DATADIR
os.makedirs(output_dir, exist_ok=True)

# Day and month
mm, dd = '07', '01'

Current version of the Lake Surface Water Temperature dataset on CDS (LSWT v4.0 + LSWT v4.2) contains 1000 lakes. The lake list (LAKELIST-1000lakes-GloboLakes-CENTRE-LSWT-v4.0-fv01.0.csv) can be downloaded via the lake website at the University of Reading http://www.laketemp.net/home_GL/GLTargets.php. Here we read directly the file from the laketemp website. A new version LSWT v4.5 will be available soon and it will contain 2000 lakes. If you are using LSWT v4.5, the lake list (ESA_CCI_static_lake_mask_v2_1km_UoR_metadata_fv2.1_06Oct2021_4laketemp.csv) can be downloaded via the lake website at the University of Reading http://www.laketemp.net/home_CCI/cci_targets.php. Here we read directly the file from the laketemp website.

# Read the file containing Name, Country, ID, lat/lon of the lake centre, maximum distance to land and
# the lat/lon of a box surrounding the lake for all the 1000 GloboLakes lakes / 2024 ESA CCI LAKES lakes
if version == '4.0':
    lakes_df = pd.read_csv(
        'http://www.laketemp.net/home_GL/LAKELIST-1000lakes-GloboLakes-CENTRE-LSWT-v4.0-fv01.0.csv'
    )
elif version == '4.5':
    lakes_df = pd.read_csv(
        'http://www.laketemp.net/home_CCI/ESA_CCI_static_lake_mask_v2_1km_UoR_metadata_fv2.1_06Oct2021_4laketemp.csv'
    )

# Extract the lis of available lakes
available_lakes = lakes_df.iloc[:, 1]

# Find the position of the lake in the csv list which we have read in a pandas dataframe
idx = [i for i in range(len(lakes_df.iloc[:, 1])) if lake_name in lakes_df.iloc[i, 1]]

if len(idx) == 0 :
    # Verify that the lake surface water temperature is available for the selected lake.
    # If the lake is not available it may be because of a spelling mistake.
    print (f'The lake "{lake_name}" is not available')
elif len(idx)>1:
    # If more than one lake is found, instruct user to be more specific in selection:
    print('Manually check the lake name!')
    print(lakes_df.iloc[idx])
else:
    lake_row = lakes_df.iloc[idx[0]]
    # # Extract the lat/lon of the centre
    latcentre, loncentre = lake_row[' lat centre'], lake_row[' lon centre']
    latmin,    latmax    = lake_row[' lat min'], lake_row[' lat max']
    lonmin,    lonmax    = lake_row[' lon min'], lake_row[' lon max']
    # latmin,    latmax    = df.iloc[idx, 6].iloc[0], df.iloc[idx, 7].iloc[0]
    # lonmin,    lonmax    = df.iloc[idx, 8].iloc[0], df.iloc[idx, 9].iloc[0]
lake_row

GLWD                                 20
 Name                     lago Titicaca
 Country                           Peru
 lat centre                    -15.7681
 lon centre                    -69.4569
 max distance to land              23.4
 lat min                       -16.5931
 lat max                       -15.2375
 lon min                       -70.0153
 lon max                       -68.5764
Name: 17, dtype: object

Downloading the data

Having the CDS api, this function will retrive the data for the selected lake into the defined output directory. The downloaded file is compressed (zip format) containing the data file in NetCDF format. For reading the lake surface water temeparture data, the files will be extracted in the output directory.

# Setting the years for the time series
if version == '4.0':
    years = (np.arange(1995,2020).astype(str)).tolist()
elif version == '4.5':
    years = (np.arange(1995,2023).astype(str)).tolist()

download_zip_file = os.path.join(DATADIR, f'{lake_name}.zip')
if not os.path.isfile(download_zip_file):
    c = cdsapi.Client()
    c.retrieve(
        'satellite-lake-water-temperature',
        {
            'version': version,
            'variable': 'lake_surface_water_temperature',
            'year': years,
            'month': mm,
            'day': dd,
            'format': 'zip' # valid formats: zip, tar and tgz
        },
        download_zip_file
    )

with zipfile.ZipFile(download_zip_file) as z:
    filelist = [os.path.join(DATADIR, f) for f in z.namelist()]
    z.extractall(DATADIR)
# Ensure the filelist is in the correct order:
filelist = sorted(filelist)

2023-04-17 11:03:35,495 INFO Welcome to the CDS
2023-04-17 11:03:35,496 INFO Sending request to https://cds.climate.copernicus.eu/api/v2/resources/satellite-lake-water-temperature
2023-04-17 11:03:35,653 INFO Request is queued
2023-04-17 11:03:36,711 INFO Request is running
2023-04-17 11:04:08,218 INFO Request is completed
2023-04-17 11:04:08,219 INFO Downloading https://download-0010-clone.copernicus-climate.eu/cache-compute-0010/cache/data2/dataset-satellite-lake-water-temperature-766deb62-0bbe-4681-a7e5-e4407d94a56b.zip to ./data_dir/Titicaca.zip (382.1M)
2023-04-17 11:05:21,241 INFO Download rate 5.2M/s

Visualise the Lake Surface Water Temperature timeseries

Now that the data have been extracted, we can read and plot them. To read the data in NetCDF format we use the Xarray library and for the visualisation of the time series we use Matplotlib.

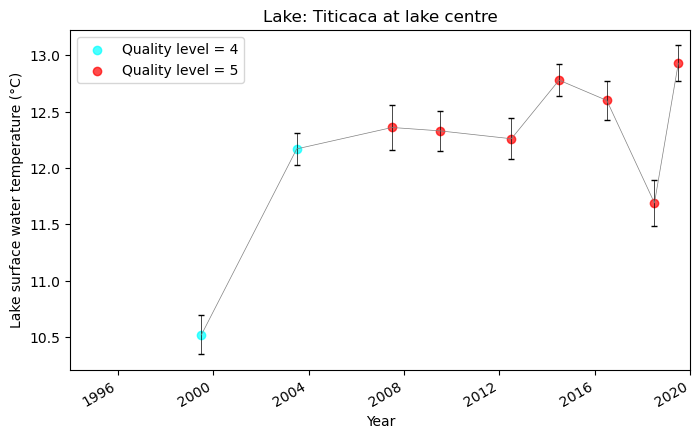

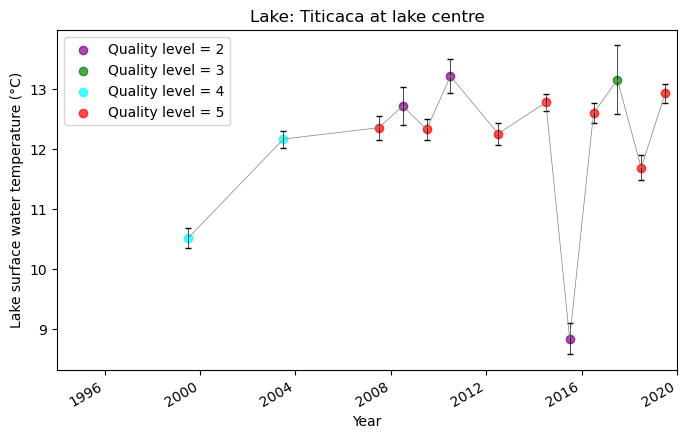

The LSWT are plotted per quality level (color of the dot) and an error bar show the LSWT uncertainty for each value.

The figure with the timeseries will be saved in the output directory in png format in the [lake_name]_timeseries.png file

# Read all files (this uses dask so the data is not loaded into RAM)
ds = xr.open_mfdataset(filelist)
ds_last = ds.isel(time=-1)

# Select a point, and load into RAM to allow faster further calculations
ds_point = ds.sel(
    lat=latcentre, lon=loncentre,
    method="nearest"
).squeeze().compute()  # The .compute() loads the reduced data array into RAM
ds_point

<xarray.Dataset>
Dimensions:                         (time: 24)
Coordinates:
    lat                             float32 -15.77
    lon                             float32 -69.47
  * time                            (time) datetime64[ns] 1995-07-01T12:00:00...
Data variables:
    lake_surface_water_temperature  (time) float32 nan nan nan ... 284.8 286.1
    lswt_uncertainty                (time) float32 nan nan nan ... 0.207 0.159
    quality_level                   (time) float32 nan nan nan ... 3.0 5.0 5.0
    obs_instr                       (time) float32 nan nan nan ... 16.0 32.0
    flag_bias_correction            (time) float32 nan nan nan ... nan nan nan
    lakeid                          (time) float64 20.0 20.0 20.0 ... 20.0 20.0
Attributes: (12/50)
    title:                           NERC GloboLakes Lake Surface Water Tempe...
    summary:                         L3S product from the NERC GloboLakes pro...
    citation:                        Carrea, L.; Merchant, C.J. (2019): Globo...
    license:                         Creative Commons by Attribution ShareAli...
    reference:                       http://www.globolakes.ac.uk/ http://www....
    institution:                     NERC
    ...                              ...
    southernmost_latitude:           -90.0
    easternmost_longitude:           180.0
    westernmost_longitude:           -180.0
    processing_level:                L3S
    cdm_data_type:                   grid
    source_file:                     19950701120000-ESACCI-L3C_GHRSST-ATSR2-C...

xarray.Dataset

• Dimensions:
  • time: 24
• Coordinates: (3)
  • lat
    ()
    float32
    -15.77

    long_name :

    latitude

    standard_name :

    latitude

    units :

    degrees_north

    valid_min :

    -90.0

    valid_max :

    90.0

    axis :

    Y

    reference_datum :

    geographical coordinates, WGS84 projection

    array(-15.775, dtype=float32)

  • lon
    ()
    float32
    -69.47

    long_name :

    longitude

    standard_name :

    longitude

    units :

    degrees_east

    valid_min :

    -180.0

    valid_max :

    180.0

    axis :

    X

    reference_datum :

    geographical coordinates, WGS84 projection

    array(-69.475, dtype=float32)

  • time
    (time)
    datetime64[ns]
    1995-07-01T12:00:00 ... 2019-07-...

    long_name :

    reference time of the lswt file

    standard_name :

    time

    array(['1995-07-01T12:00:00.000000000', '1996-07-01T12:00:00.000000000',
           '1997-07-01T12:00:00.000000000', '1998-07-01T12:00:00.000000000',
           '1999-07-01T12:00:00.000000000', '2001-07-01T12:00:00.000000000',
           '2002-07-01T12:00:00.000000000', '2003-07-01T12:00:00.000000000',
           '2004-07-01T12:00:00.000000000', '2005-07-01T12:00:00.000000000',
           '2006-07-01T12:00:00.000000000', '2007-07-01T12:00:00.000000000',
           '2008-07-01T12:00:00.000000000', '2009-07-01T12:00:00.000000000',
           '2010-07-01T12:00:00.000000000', '2011-07-01T12:00:00.000000000',
           '2012-07-01T12:00:00.000000000', '2013-07-01T12:00:00.000000000',
           '2014-07-01T12:00:00.000000000', '2015-07-01T12:00:00.000000000',
           '2016-07-01T12:00:00.000000000', '2017-07-01T12:00:00.000000000',
           '2018-07-01T12:00:00.000000000', '2019-07-01T12:00:00.000000000'],
          dtype='datetime64[ns]')

• Data variables: (6)
  • lake_surface_water_temperature
    (time)
    float32
    nan nan nan ... 286.3 284.8 286.1

    units :

    Kelvin

    long_name :

    lake surface skin temperature

    valid_min :

    -200

    valid_max :

    5000

    comment :

    The observations from different instruments have been combined.

    standard_name :

    lake_surface_water_temperature

    array([      nan,       nan,       nan,       nan, 283.66998,       nan,
                 nan, 285.32   ,       nan,       nan,       nan, 285.50998,
           285.87   , 285.47998, 286.37   ,       nan, 285.41   ,       nan,
           285.93   , 281.99   , 285.75   , 286.31   , 284.84   , 286.08   ],
          dtype=float32)

  • lswt_uncertainty
    (time)
    float32
    nan nan nan ... 0.573 0.207 0.159

    units :

    Kelvin

    long_name :

    Total uncertainty

    valid_min :

    0

    valid_max :

    10000

    standard_name :

    lake_surface_water_temperature_uncertainty

    comment :

    Total uncertainty was computed with LSWT uncertainties from the Optimal Estimation and bias correction uncertainty.

    array([       nan,        nan,        nan,        nan, 0.17300001,
                  nan,        nan, 0.142     ,        nan,        nan,
                  nan, 0.2       , 0.31500003, 0.179     , 0.289     ,
                  nan, 0.18400002,        nan, 0.143     , 0.26000002,
           0.17      , 0.573     , 0.20700002, 0.15900001], dtype=float32)

  • quality_level
    (time)
    float32
    nan nan nan nan ... 5.0 3.0 5.0 5.0

    flag_meanings :

    no_data bad_data worst_quality low_quality acceptable_quality best_quality

    flag_masks :

    [0 1 2 3 4 5]

    long_name :

    quality levels

    valid_min :

    0

    valid_max :

    5

    comment :

    These are overall quality indicators.

    standard_name :

    lake_surface_water_temperature_quality_level

    array([nan, nan, nan, nan,  4., nan, nan,  4., nan, nan, nan,  5.,  2.,
            5.,  2., nan,  5., nan,  5.,  2.,  5.,  3.,  5.,  5.],
          dtype=float32)

  • obs_instr
    (time)
    float32
    nan nan nan nan ... 32.0 16.0 32.0

    long_name :

    observation instruments

    flag_meanings :

    ATSR2 ATSR2-AATSR AATSR AATSR-AVHRR AVHRRA

    flag_masks :

    [ 1 2 4 8 16]

    comment :

    If the bit is set to 1 the observation from the correspondent instrument/instruments have been used to generate the LSWT.

    standard_name :

    instrument_for_observation

    array([nan, nan, nan, nan,  1., nan, nan,  4., nan, nan, nan, 16., 16.,
            8., 16., nan, 16., nan, 16., 16., 16., 32., 16., 32.],
          dtype=float32)

  • flag_bias_correction
    (time)
    float32
    nan nan nan nan ... nan nan nan nan

    long_name :

    bias correction flag

    flag_meanings :

    ATSR2 AATSR ATSR2-AATSR

    flag_masks :

    [1 2 3]

    comment :

    The reference instrument was the AVHRRMTA, conseuqently no bias correction has been applied to observations from the AVHRR instrument.

    standard_name :

    instrument_bias_correction_flag

    array([nan, nan, nan, nan,  1., nan, nan,  2., nan, nan, nan, nan, nan,
            2., nan, nan, nan, nan, nan, nan, nan, nan, nan, nan],
          dtype=float32)

  • lakeid
    (time)
    float64
    20.0 20.0 20.0 ... 20.0 20.0 20.0

    units :

    1

    long_name :

    Lake ID

    valid_min :

    2

    valid_max :

    999999

    comment :

    GLWD (Global Lakes and Wetlands Database) lake ID of GloboLakes lakes as defined in Carrea L. et al. (2015) Datasets related to in-land water for limnology and remote sensing applications: distance-to-land, distance-to-water, water-body identifier and lake-centre co-ordinates. Geoscience Data Journal, 2 (2) pp. 83-97.

    standard_name :

    lake_identifier

    array([20., 20., 20., 20., 20., 20., 20., 20., 20., 20., 20., 20., 20.,
           20., 20., 20., 20., 20., 20., 20., 20., 20., 20., 20.])

• Indexes: (1)
  • time
    PandasIndex

    PandasIndex(DatetimeIndex(['1995-07-01 12:00:00', '1996-07-01 12:00:00',
                   '1997-07-01 12:00:00', '1998-07-01 12:00:00',
                   '1999-07-01 12:00:00', '2001-07-01 12:00:00',
                   '2002-07-01 12:00:00', '2003-07-01 12:00:00',
                   '2004-07-01 12:00:00', '2005-07-01 12:00:00',
                   '2006-07-01 12:00:00', '2007-07-01 12:00:00',
                   '2008-07-01 12:00:00', '2009-07-01 12:00:00',
                   '2010-07-01 12:00:00', '2011-07-01 12:00:00',
                   '2012-07-01 12:00:00', '2013-07-01 12:00:00',
                   '2014-07-01 12:00:00', '2015-07-01 12:00:00',
                   '2016-07-01 12:00:00', '2017-07-01 12:00:00',
                   '2018-07-01 12:00:00', '2019-07-01 12:00:00'],
                  dtype='datetime64[ns]', name='time', freq=None))

• Attributes: (50)

  title :

  NERC GloboLakes Lake Surface Water Temperature L3S product

  summary :

  L3S product from the NERC GloboLakes project, produced using the GloboLakes v4.0 algorithm.

  citation :

  Carrea, L.; Merchant, C.J. (2019): GloboLakes Lake Surface Water Temperature (LSWT) v4.0 (1995-2016). Centre for Environmental Data Analysis. doi:10.5285/76a29c5b55204b66a40308fc2ba9cdb3 Papers describing/related to the dataset: MacCallum, S.N. and Merchant, C.J. (2012) Surface water temperature observations of large lakes by optimal estimation. Canadian Journal of Remote Sensing, 38 (1). pp. 25-45.; Carrea, L., Embury, O. and Merchant, C. J. (2015) Datasets related to in-land water for limnology and remote sensing applications: distance-to-land, distance-to-water, water-body identifier and lake-centre co-ordinates. Geoscience Data Journal, 2 (2). pp. 83-97.

  license :

  Creative Commons by Attribution ShareAlike CC-BY-SA v4.0 (https://creativecommons.org/licenses/by-sa/4.0/)

  reference :

  http://www.globolakes.ac.uk/ http://www.laketemp.net/home_GL/

  institution :

  NERC

  history :

  Created with using GBCS library v2.6.1-146-gfe50b81

  id :

  NERCGloboLakes-L3S-CDR

  product_version :

  4.0

  uuid :

  a54386ae-3a08-11e9-b28e-ec0d9ad44524

  tracking_id :

  a54386ae-3a08-11e9-b28e-ec0d9ad44524

  netcdf_version_id :

  4.4.1.1

  source :

  ATSR2-ESA-L1-v3, AATRS-ESA-L1-v3, AVHRRMTA-EUMETSAT-L1-v1, ERA_INTERIM-ECMWF-WSP-v1.0, GloboLakes-Mask-v1.0

  platform :

  ERS-2

  sensor :

  ATSR2

  Metadata_Conventions :

  Unidata Dataset Discovery v1.0

  Conventions :

  CF-1.6

  gemet_keywords :

  inland water; temperature; climate; seasonal variations; hydrology; limnology; environmental data; environmental monitoring; monitoring; remote sensing

  gcmd_keywords :

  LAKES/RESERVOIRS

  iso19115_topic_categories :

  Environment; Inland water; GeoscientificInformation

  standard_name_vocabulary :

  NetCDF Climate and Forecast (CF) Metadata Convention

  acknowledgment :

  Funded by the UK Natural Environment Research Council (NERC)

  creator_name :

  NERC GloboLakes

  creator_url :

  http://www.globolakes.ac.uk/ http://www.laketemp.net/home_GL/

  creator_email :

  l.carrea@reading.ac.uk

  creator_processing_institution :

  These data were produced on the JASMIN infrastructure at STFC as part of the NERC GloboLakes project

  project :

  GloboLakes

  publisher_name :

  NERC GloboLakes

  publisher_url :

  http://www.globolakes.ac.uk/

  publisher_email :

  l.carrea@reading.ac.uk

  date_created :

  2019-02-26T20:54:01Z

  time_coverage_start :

  19950701T000000Z

  time_coverage_end :

  19950701T235959Z

  time_coverage_duration :

  1 day

  geospatial_lat_units :

  degrees_north

  geospatial_lat_resolution :

  0.05

  geospatial_lon_units :

  degrees_east

  geospatial_lon_resolution :

  0.05

  geospatial_vertical_min :

  -1e-05

  geospatial_lat_min :

  -90.0

  geospatial_lat_max :

  90.0

  geospatial_lon_min :

  -180.0

  geospatial_lon_max :

  180.0

  northernmost_latitude :

  90.0

  southernmost_latitude :

  -90.0

  easternmost_longitude :

  180.0

  westernmost_longitude :

  -180.0

  processing_level :

  L3S

  cdm_data_type :

  grid

  source_file :

  19950701120000-ESACCI-L3C_GHRSST-ATSR2-CDR2.0-v02.0-fv01.0.nc

# Convert to a pandas dataframe for plotting:
df_point = ds_point.to_pandas()
# Remove any point without a lswt value
df_point = df_point[~np.isnan(df_point['lake_surface_water_temperature'].values)]
df_point["lake_surface_water_temperature"] -= 273.15
df_point

	lat	lon	lake_surface_water_temperature	lswt_uncertainty	quality_level	obs_instr	flag_bias_correction	lakeid
time
1999-07-01 12:00:00	-15.775	-69.474998	10.519989	0.173	4.0	1.0	1.0	20.0
2003-07-01 12:00:00	-15.775	-69.474998	12.170013	0.142	4.0	4.0	2.0	20.0
2007-07-01 12:00:00	-15.775	-69.474998	12.359985	0.200	5.0	16.0	NaN	20.0
2008-07-01 12:00:00	-15.775	-69.474998	12.720001	0.315	2.0	16.0	NaN	20.0
2009-07-01 12:00:00	-15.775	-69.474998	12.329987	0.179	5.0	8.0	2.0	20.0
2010-07-01 12:00:00	-15.775	-69.474998	13.220001	0.289	2.0	16.0	NaN	20.0
2012-07-01 12:00:00	-15.775	-69.474998	12.260010	0.184	5.0	16.0	NaN	20.0
2014-07-01 12:00:00	-15.775	-69.474998	12.779999	0.143	5.0	16.0	NaN	20.0
2015-07-01 12:00:00	-15.775	-69.474998	8.839996	0.260	2.0	16.0	NaN	20.0
2016-07-01 12:00:00	-15.775	-69.474998	12.600006	0.170	5.0	16.0	NaN	20.0
2017-07-01 12:00:00	-15.775	-69.474998	13.160004	0.573	3.0	32.0	NaN	20.0
2018-07-01 12:00:00	-15.775	-69.474998	11.690002	0.207	5.0	16.0	NaN	20.0
2019-07-01 12:00:00	-15.775	-69.474998	12.929993	0.159	5.0	32.0	NaN	20.0

# We create a plotting function that we can re-use in this section:
def plot_time_series(
    df_point, lake_name, output_dir,
    quality_flags=[1,2,3,4,5,6],
    qf_colors = ['darkgrey','purple','green','cyan','red'],
    plotname_tag = ""
):
    fig, ax = plt.subplots(1,1, figsize=(8,5))
    qf_mask = [qf in quality_flags for qf in df_point["quality_level"]]
    df_point = df_point[qf_mask]
    df_point["lake_surface_water_temperature"].plot(
        ax=ax, linestyle='-', color='grey', lw=0.5,
        label='_nolegend_',
        yerr = df_point["lswt_uncertainty"], capthick=1.9, capsize=2, ecolor="black", mew=1,
    )

    # Plot the quality flags over the top
    for qf in quality_flags:
        if qf not in df_point["quality_level"].values:
            continue
        df_qf = df_point[df_point["quality_level"]==qf]
        plt.scatter(
            df_qf.index, df_qf["lake_surface_water_temperature"],
            marker='o', color=qf_colors[qf-1], alpha=0.7,
            label = f"Quality level = {qf}"
        )

    plt.legend(loc='upper left')

    plt.xlim("1994","2020")
    plt.title(f'Lake: {lake_name.title()} at lake centre')
    plt.xlabel("Year")
    plt.ylabel("Lake surface water temperature (°C)")
    # save the figure
    png_file = f'{output_dir}/{lake_name}_timeseries{plotname_tag}.png'
    plt.savefig(png_file, dpi=500)

plot_time_series(
    df_point, lake_name, output_dir,
)

We recommend to use ONLY LSWT of best quality level 4 and 5. LSWT of quality level 1 should never be used. If you want to use lower quality level data, careful checks have to be carried out. We plot then only the observations of quality level 4 and 5.

plot_time_series(
    df_point, lake_name, output_dir,
    quality_flags=[4,5], plotname_tag = "_ql45"
)

Plot the position of the location of the extracted LSWT on the lake mask

For generating this figure we use the cartopy library. The lake mask showing the cells belonging to the selected lake is plotted and the position on the lake where the time series was extracted is highlighted.

# Set a margin to slighlty enlarge the figure
step = 0.1

# We take teh lakeid from the last timestep and cut out to our area of interest
lakeid = ds_last.lakeid.sel(lat=slice(latmin-step, latmax+step), lon=slice(lonmin-step, lonmax+step))

# Plot the lake mask and the location of the centre
fig = plt.figure(figsize = (11,8.5))
ax = plt.subplot(1,1,1, projection = crs.PlateCarree())

ax.coastlines()
ax.gridlines()
ax.add_feature(feature.BORDERS, linewidth=0.5, edgecolor='blue')
ax.stock_img()
# Set the extent using the fields extracted from the Lakes metadata earlier
ax.set_extent([lonmin-step, lonmax+step, latmin-step, latmax+step])
ax.set_title(f'Lake: {lake_name.title()}')

map_proj = crs.PlateCarree()

# Plot the lake mask
lakeid.plot(
    cmap=plt.cm.Reds,transform=crs.PlateCarree(),subplot_kws={'projection': map_proj},
    add_colorbar=False
)

# Plot the location of the lake centre where the LSWT time series have been extracted
plt.scatter(x = [loncentre], y = [latcentre], s = 20, marker='s', color = 'blue', transform = crs.PlateCarree())

# save the figure
png_file = f'{output_dir}/{lake_name}_timeseries_location.png'
plt.savefig(png_file, dpi=500)

Plot the LSWT, quality level and uncertainty for the selected day of the last year on record

For generating this figure we use the cartopy library.

First we plot the LSWT over the full lake for the selected day and month and for the last year in the time series.

lswt_y = ds_last.lake_surface_water_temperature.sel(lat=slice(latmin-step, latmax+step), lon=slice(lonmin-step, lonmax+step))
datestr = str(lswt_y.time.values)[:10]

fig = plt.figure(figsize = (11,8.5))
ax = plt.subplot(1,1,1, projection = crs.PlateCarree())

ax.coastlines()
ax.add_feature(feature.BORDERS, linewidth=0.5, edgecolor='blue')
ax.stock_img()
ax.set_extent([lonmin-step, lonmax+step, latmin-step, latmax+step])
ax.set_title(f'Lake: {lake_name.title()}')

map_proj = crs.PlateCarree()

# Plot the lake mask
lswt_y.plot(
    cmap=plt.cm.viridis,transform=crs.PlateCarree(),subplot_kws={'projection': map_proj},
)
ax.set_title(f"Lake surface water temperature ({datestr})")


# save the figure
png_file = f'{output_dir}/{lake_name}_LSWT_{datestr}.png'
plt.savefig(png_file, dpi=500)

Now we plot the LSWT uncertainty for the selected day and month and for the last year in the time series.

lswt_y = ds_last.lswt_uncertainty.sel(lat=slice(latmin-step, latmax+step), lon=slice(lonmin-step, lonmax+step))

fig = plt.figure(figsize = (11,8.5))
ax = plt.subplot(1,1,1, projection = crs.PlateCarree())

ax.coastlines()
ax.add_feature(feature.BORDERS, linewidth=0.5, edgecolor='blue')
ax.stock_img()
ax.set_extent([lonmin-step, lonmax+step, latmin-step, latmax+step])
ax.set_title(f'Lake: {lake_name.title()}')

map_proj = crs.PlateCarree()

# Plot the lake mask
lswt_y.plot(cmap=plt.cm.cividis,transform=crs.PlateCarree(),subplot_kws={'projection': map_proj})

ax.set_title(f"LSWT uncertainty ({datestr})")


# save the figure
png_file = f'{output_dir}/{lake_name}_LSWT_UNC_{datestr}.png'
plt.savefig(png_file, dpi=500)

Now we plot the quality levels for the selected day and month and for the last year in the time series.

lswt_y = ds_last.quality_level.sel(lat=slice(latmin-step, latmax+step), lon=slice(lonmin-step, lonmax+step))

fig = plt.figure(figsize = (11,8.5))
ax = plt.subplot(1,1,1, projection = crs.PlateCarree())

ax.coastlines()
ax.add_feature(feature.BORDERS, linewidth=0.5, edgecolor='blue')
ax.stock_img()
ax.set_extent([lonmin-step, lonmax+step, latmin-step, latmax+step])
ax.set_title(f'Lake: {lake_name.title()}')

map_proj = crs.PlateCarree()

# Plot the lake mask
lswt_y.plot(
    cmap=plt.cm.viridis,transform=crs.PlateCarree(),subplot_kws={'projection': map_proj},
    levels=[0.5,1.5,2.5,3.5,4.5,5.5], cbar_kwargs={'ticks': [1,2,3,4,5]}
)
ax.set_title(f"LSWT Quality Level ({datestr})")


# save the figure
png_file = f'{output_dir}/{lake_name}_QL_{datestr}.png'
plt.savefig(png_file, dpi=500)
